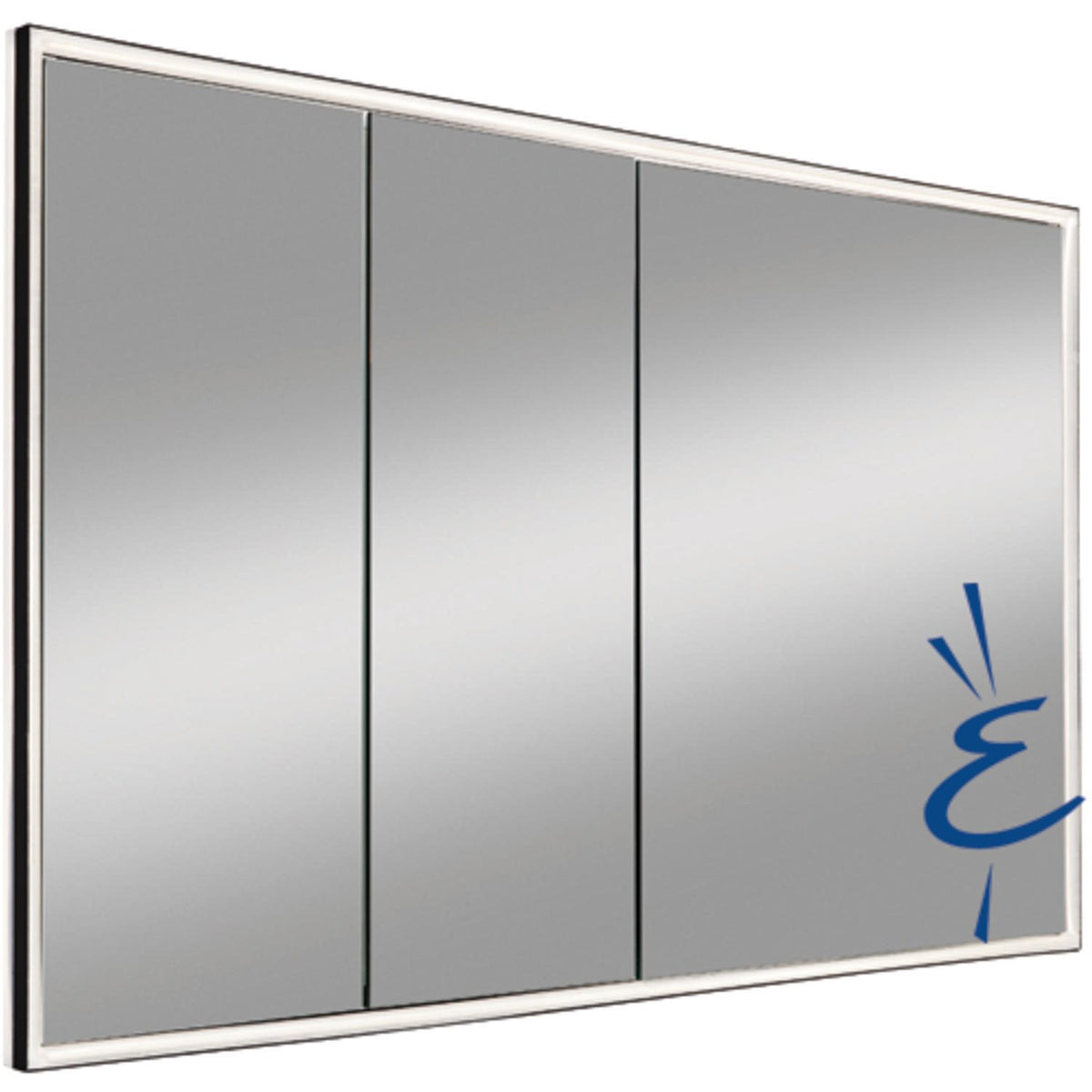

nobilia LED aluminum frame for mirror cabinets WBSP* as built-in variant LARSP80 83.2 cm

nobilia LED aluminum frame for mirror cabinets WBSP* as built-in variant LARSP80 83.2 cm Beleuchtung

• LED aluminum frame for mirror cabinets WBSP* as installation variant
• Aluminum frame black anodized
• Cover acrylic glass frosted
• All-around LED lighting
• Light emission at front
• Profile width for lateral coverage of wall cutout: 16 mm
• LED - 12 V DC, 2700 - 6500 K
• 4 x 2000 mm connection cable for starter set
• Depth: 60 mm
• Height: 752 mm
• Energy efficiency class G / Protection rating IP 44
• Installation variant for mirror cabinets WBSP*
• Wall cutout for mirrored cabinets WBSP* as installation variant: corpus width and height + 10 mm
• Installation depth: 178 mm
• LED starter sets LSET-SMART36/60(-FB) are not included
• Incl. 1 handle for mirror cabinet doors at 600 mm width
• Incl. 2 handles for 800 mm width
• Incl. 3 handles for 900/1000/1200 mm width

nobilia Product Information

• nobilia MPN / nobilia Article Number: 15384
• nobilia Type / Article Designation: LARSP80 Beleuchtung
• Type / Execution: Zubehör
• Body Dimensions: H 752 (mm) | B 832 mm | L 60 mm
