Pino kitchen 160 cm white & concrete graphite gray available immediately ~

Pino kitchen 160 cm white & concrete graphite gray available immediately, completely without electrical appliances and super easy to assemble

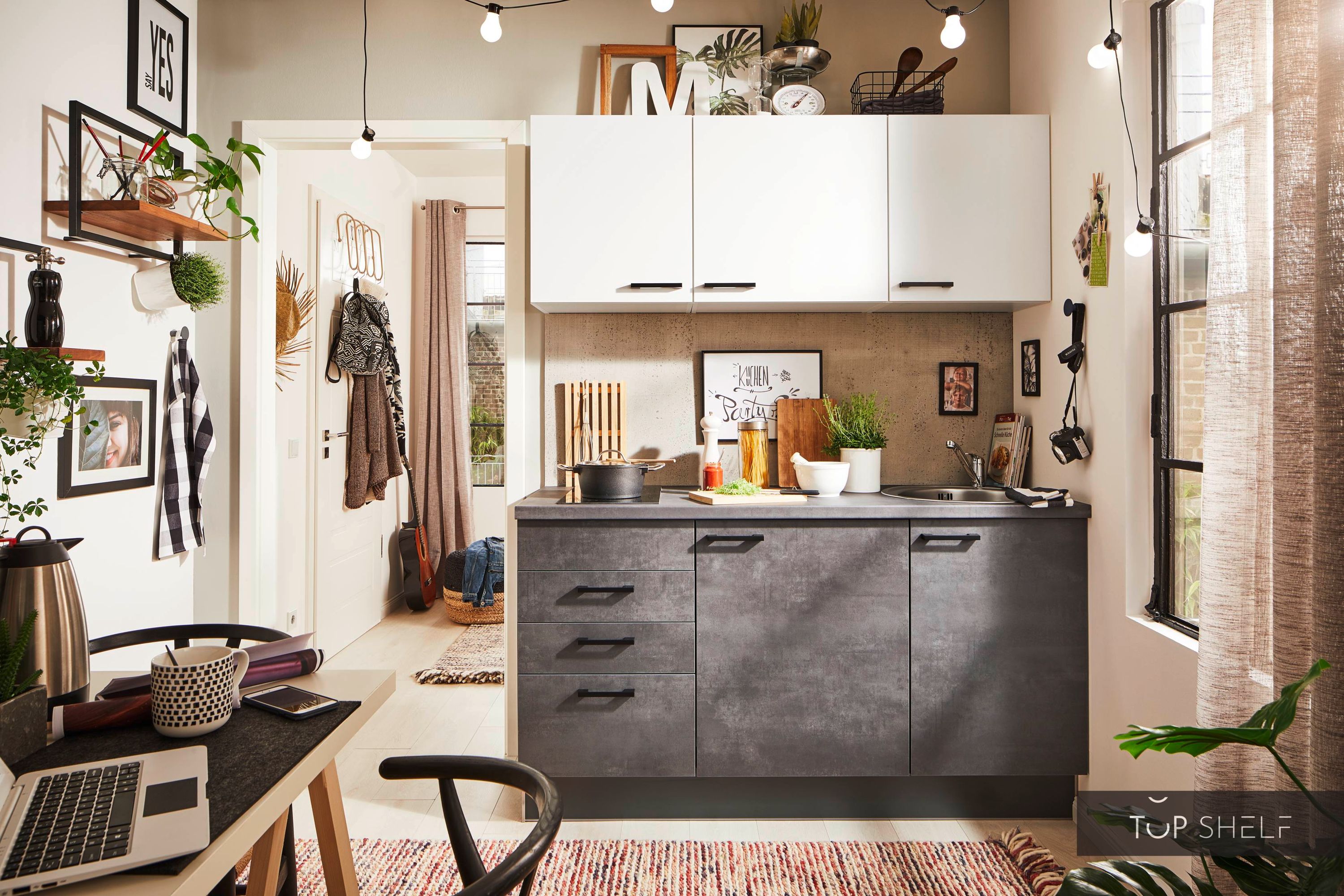

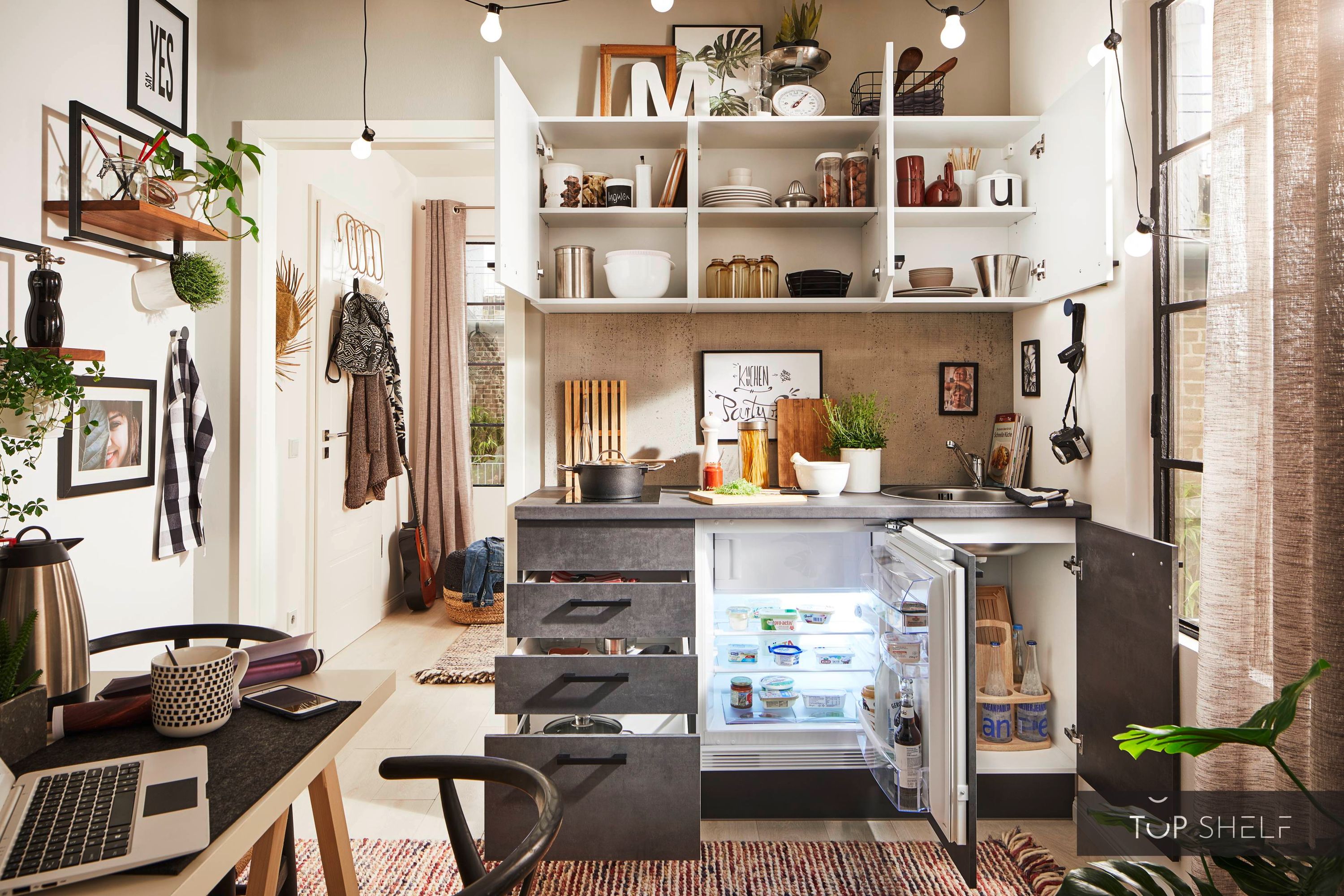

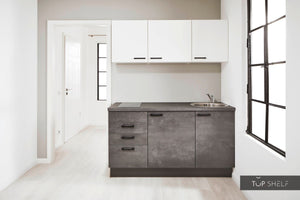

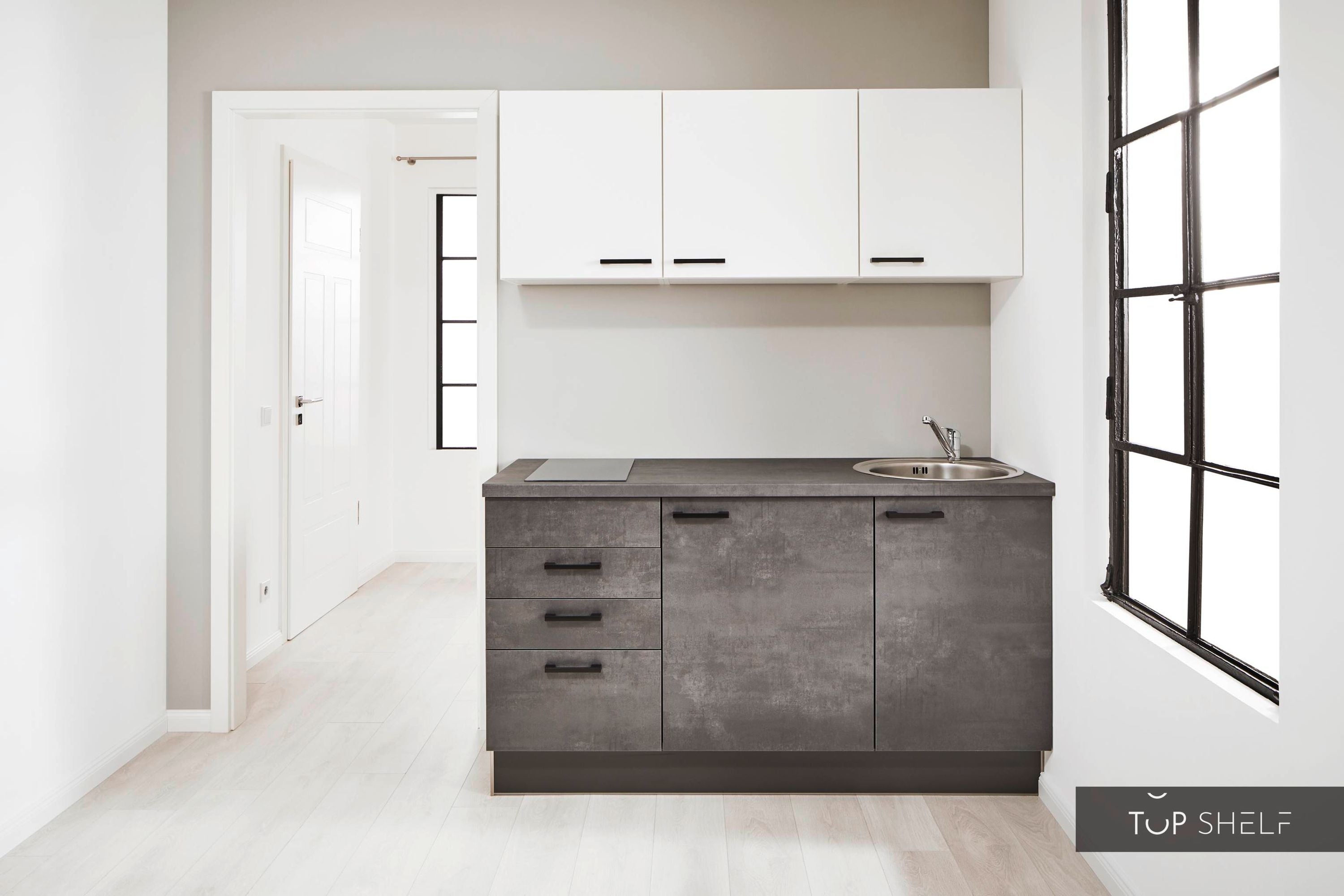

The completely pre-assembled Pino kitchen consists of a kitchen unit with a total length of 1.60 m | 160cm. The fitted kitchen includes a sink cabinet, a door for the refrigerator, a base cabinet for the hob and three wall cabinets. The matching built-in appliances from the manufacturer Zanker are supplied directly with the kitchens.

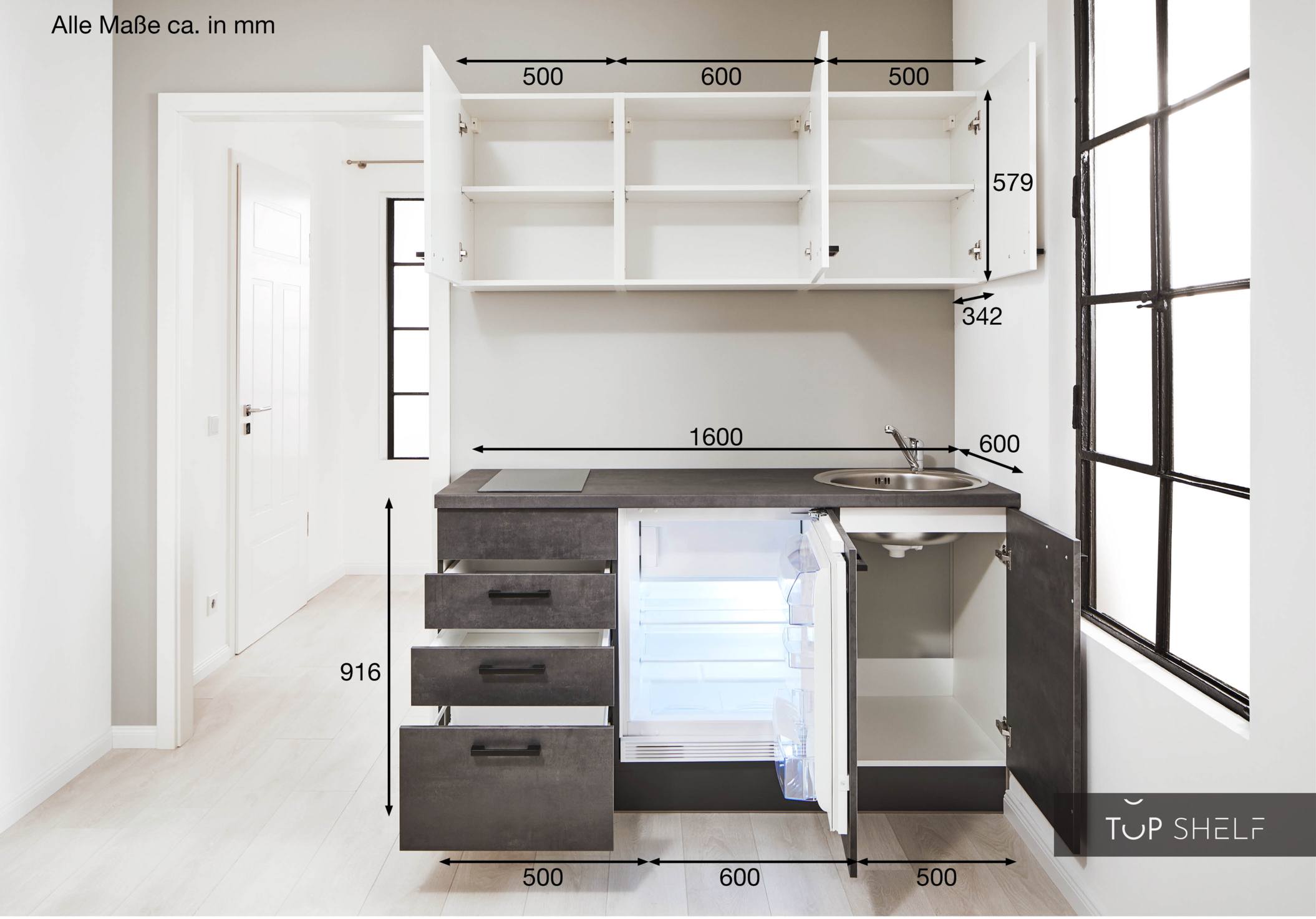

This Pino kitchen is a total of 1.60 m wide and 2.06 m high.

The Pino cabinets are characterized by the following features, among others:

easy & fast

Super easy to set up thanks to fully assembled cabinets, very quick to set up,
Delivery by professional shipping company, illustrated assembly instructions are included.

all inclusive

 Zanker built-in appliances: refrigerator, glass ceramic hob, sink + tap, worktop cutouts for sink and hob

durable & hard-wearing

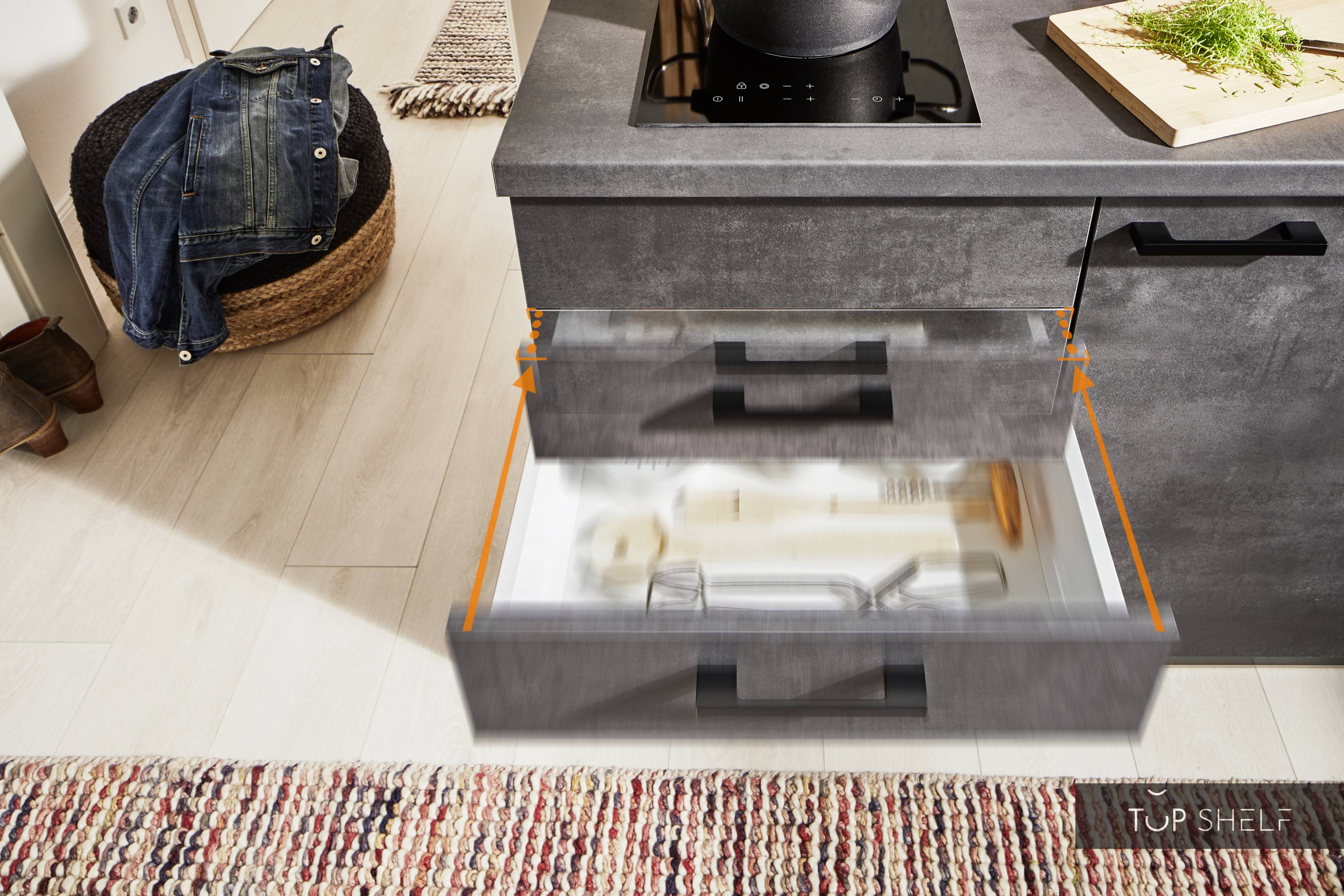

Made in Germany, high-quality scratch and abrasion resistant, fronts and body melamine coated on both sides, particularly high resilience of the visible edges. Particularly stable quality fittings from Blum, practical full extension, quiet operation with soft close technology; Self-closing door hinges with 107° opening angle for convenient access to storage space

well thought out

Height-adjustable base feet (14 -17 cm) enable perfect alignment of the kitchen, the base panel with attachable sealing profile prevents water and dirt from penetrating

Materials & Decors

• Front: White, concrete graphite gray; Carrier plate coated with melamine resin with slightly rounded edges all around; Front thickness 16 mm
• Corpus: White, graphite, base/ceiling panels white, front edges in body decor, cabinet interior white; 16 mm thick with melamine coating on both sides, front with white 1 mm thick edge, back with neutral paper edge

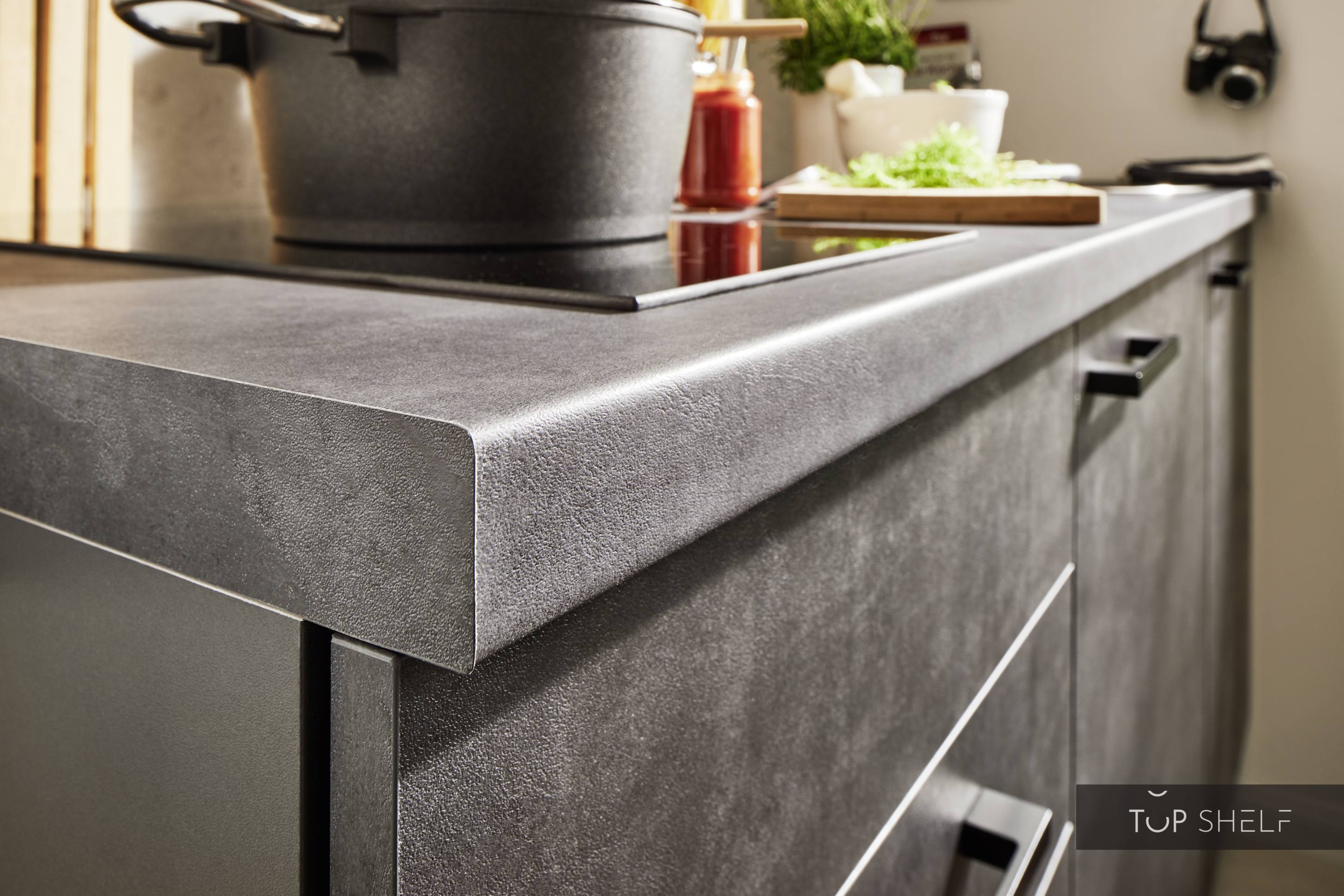

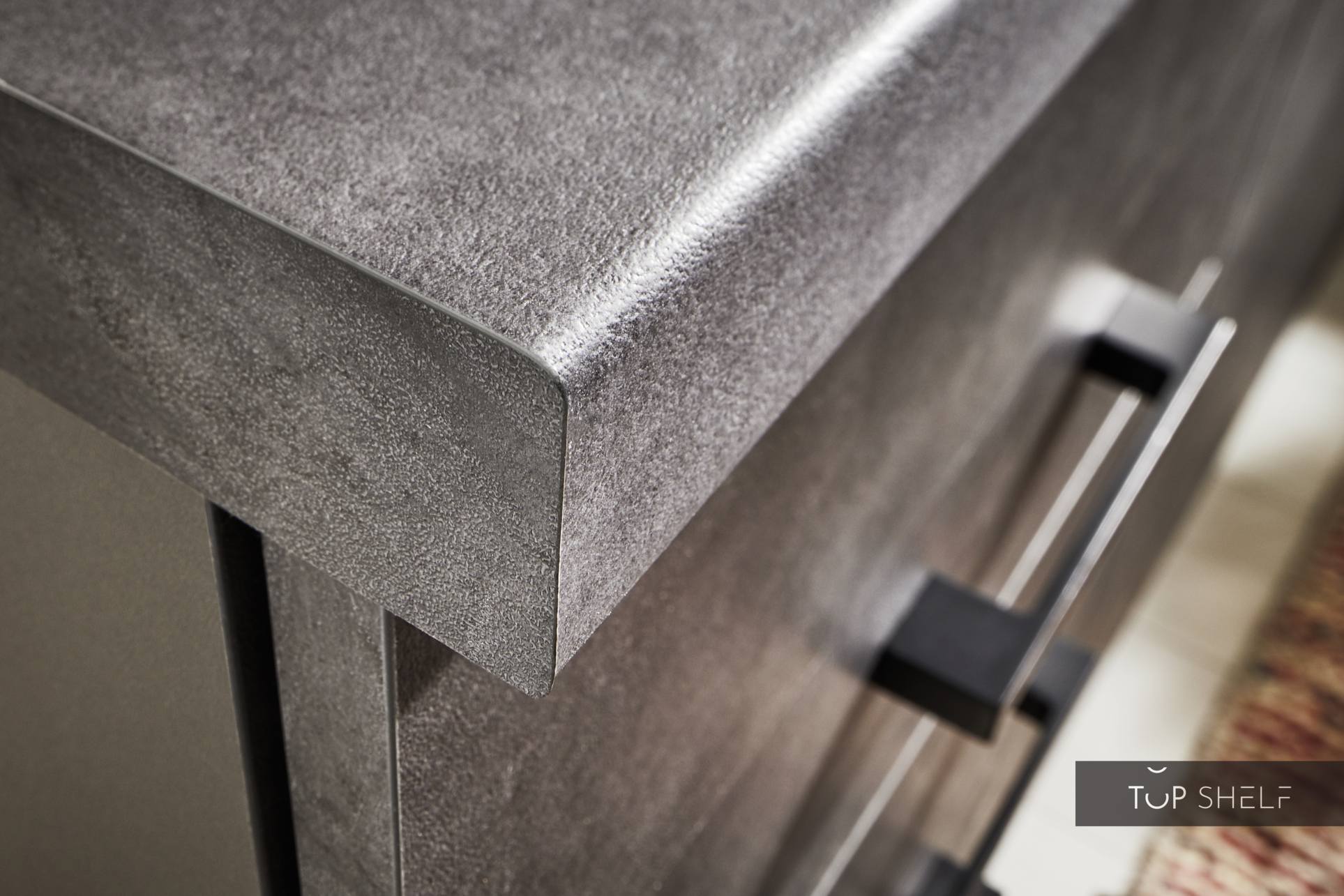

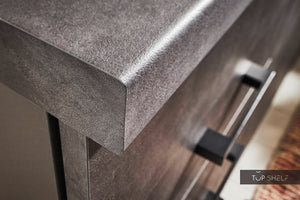

• Worktop: Graphite gray concrete, high-quality three-layer chipboard, surface covered with branded laminate panels
• Handles: Metal, matt black
• Hinges: self-closing Blum clip hinges in all-metal design, 3-dimensionally adjustable, opening angle 107
• Installed sink: Stainless steel including mixer tap

Assembly Information & Delivery

• Easy to set up thanks to fully assembled cabinets
• Illustrated assembly instructions are included with every kitchen shipment
• Fast & reliable and cost-effective shipping delivery

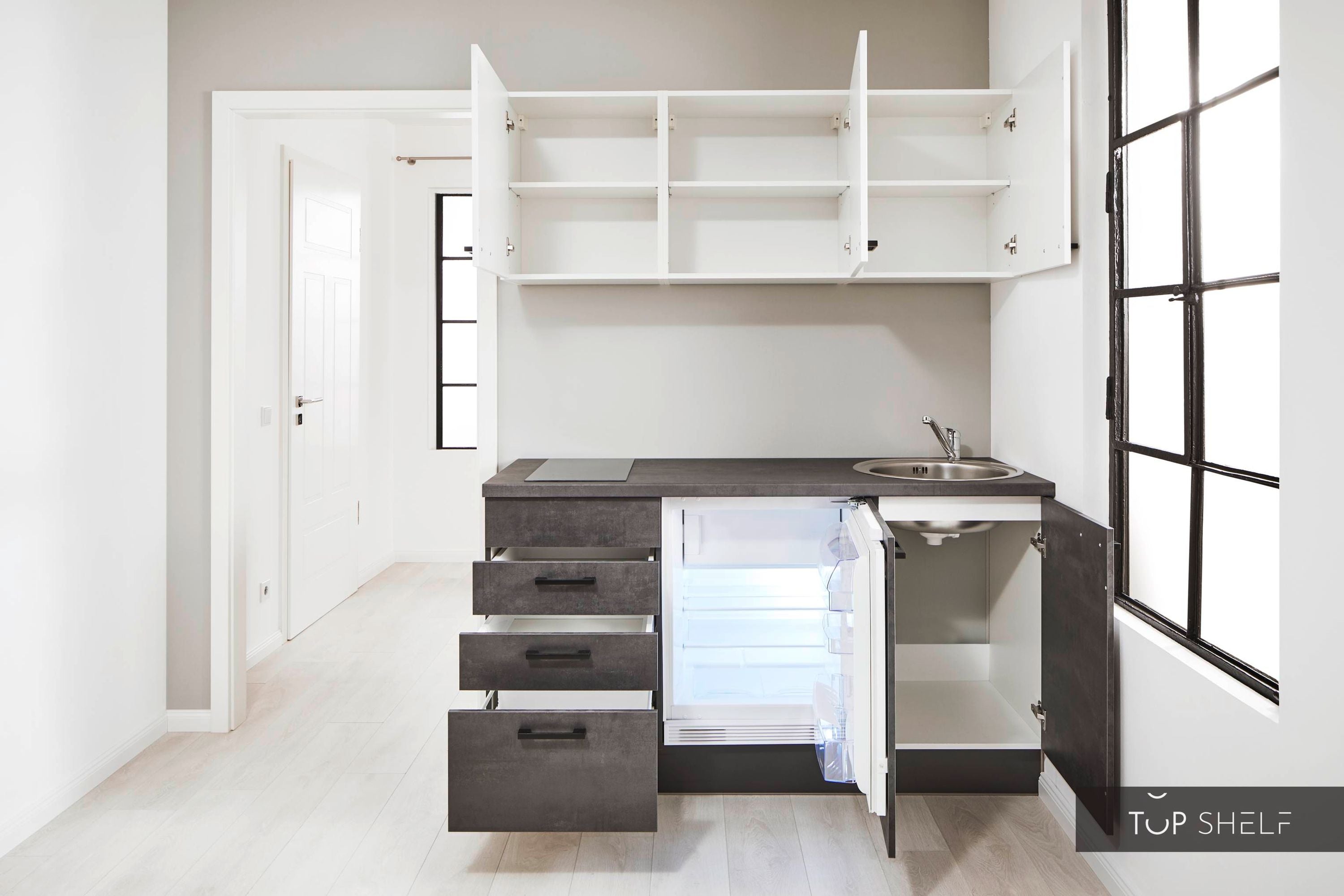

Scope of delivery - the following Pino cabinets and Pino kitchen accessories items are included:

Pino kitchen cabinets:

1. Base cabinet for sink, 1 revolving door, 50 x 87.8 x 57.6 cm
2. Base cabinet for hob, 2 drawers, 1 pull-out, 50 x 87.8 x 57.6 cm
3. door for refrigerator, 56.8cm wide
4. 2 x wall cabinet, 1 revolving door, 1 x stop on the right, 1 x stop on the left, 50 x 57.9 x 34.2 cm
5. Wall cabinet, 1 revolving door, 1 x stop on the right, 60 x 57.9 x 34.2 cm

Pino kitchen accessories included:

1. Worktop including cutout for hob and sink L = 160 cm
2. base package

The following electrical devices and accessories can be selected optionally:

Electrical appliances:

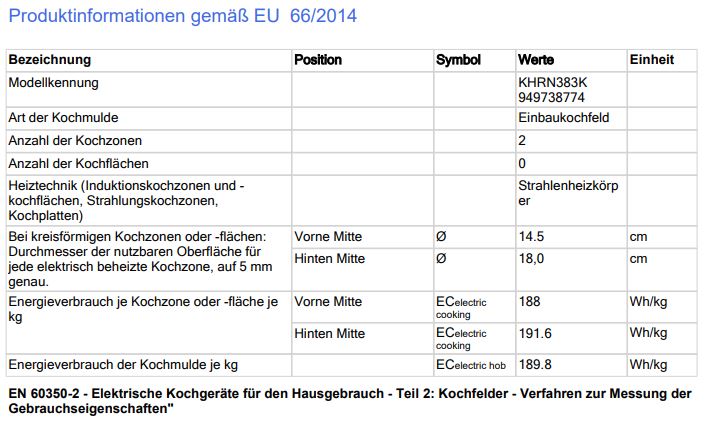

1. glass ceramic hob KHRN 383 K from the Zanker brand has two hobs. The quick-heating cooking zones can be operated via Touch Control touch sensor. The Zanker hob is equipped with a timer, a child lock, locking function and an off-sound control. The dimensions are as follows: 29.00 cm wide, 52.00 cm deep and 3.80 cm high. The large hob has an output of 1700 watts and a diameter of 18 cm and the small hob has an output of 1200 watts and a diameter of 14.5 cm. The connected load is 1.60m long with a Schuko plug and offers a direct connection to a 230V socket.

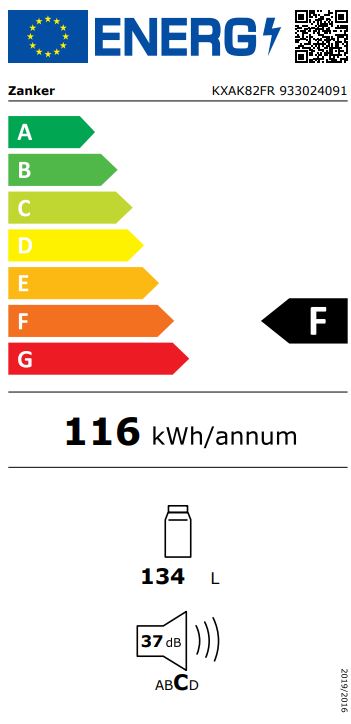

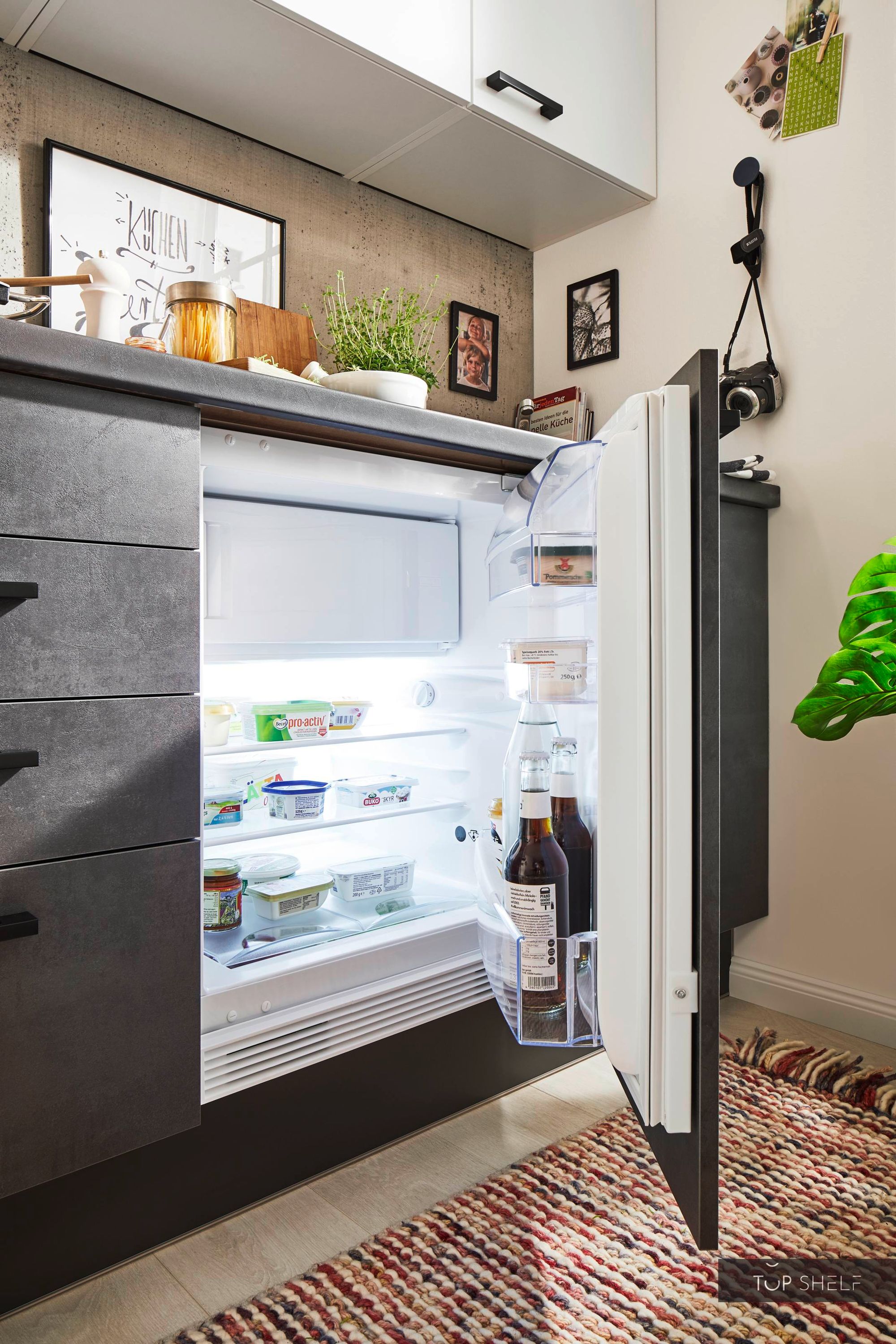

2. The KXAK 82 FR undercounter refrigerator with freezer compartment from the Zanker brand has an installation height of 82.00 cm and a total usable capacity of 134 liters. The refrigerator is classified in energy efficiency class F. The annual energy consumption is 116 kWh. The device has a height of 81.9 cm, a width of 59.60 cm and a depth of 54.70 cm. The airborne sound emission in db(A) re 1 pW is 37 dB(A).

Kitchen accessories:

1. stainless steel sink with tap hole
2. mixer tap high pressure
