Pino kitchen 240 cm white immediately available ~

Pino kitchen 240 cm white immediately available completely without electrical appliances and super easy assembly

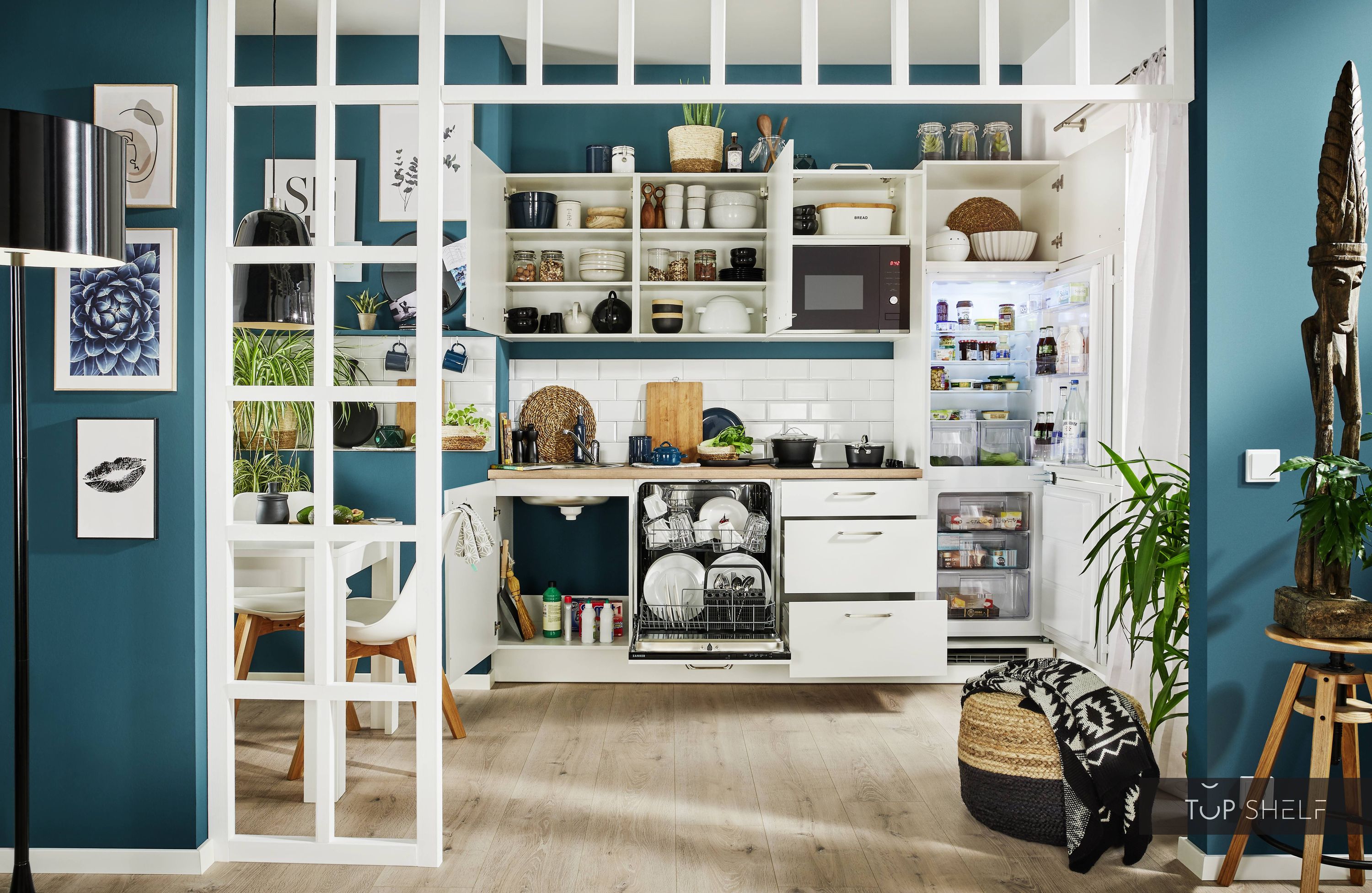

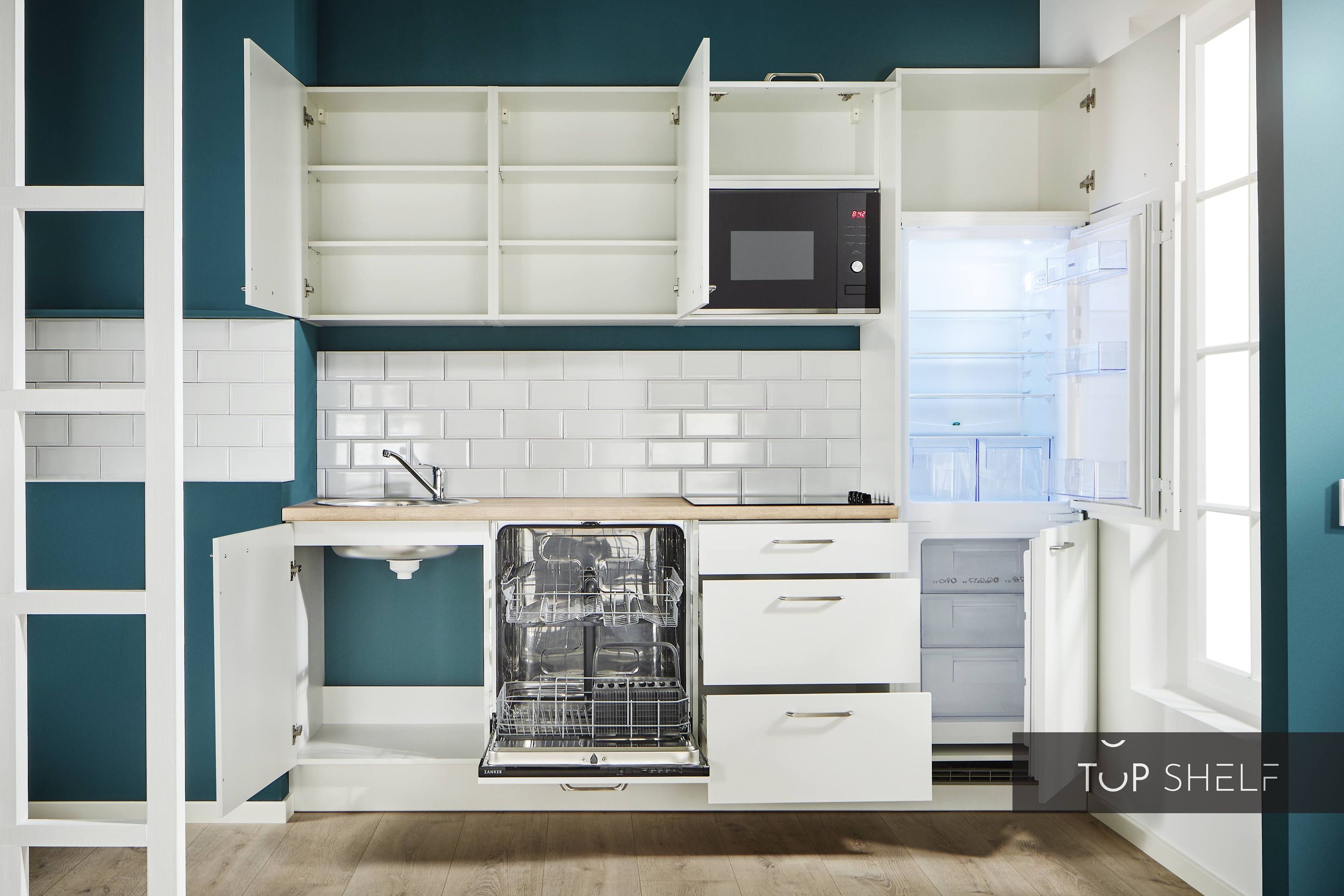

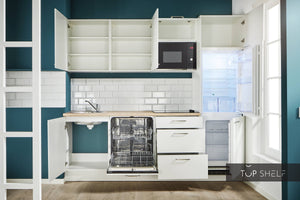

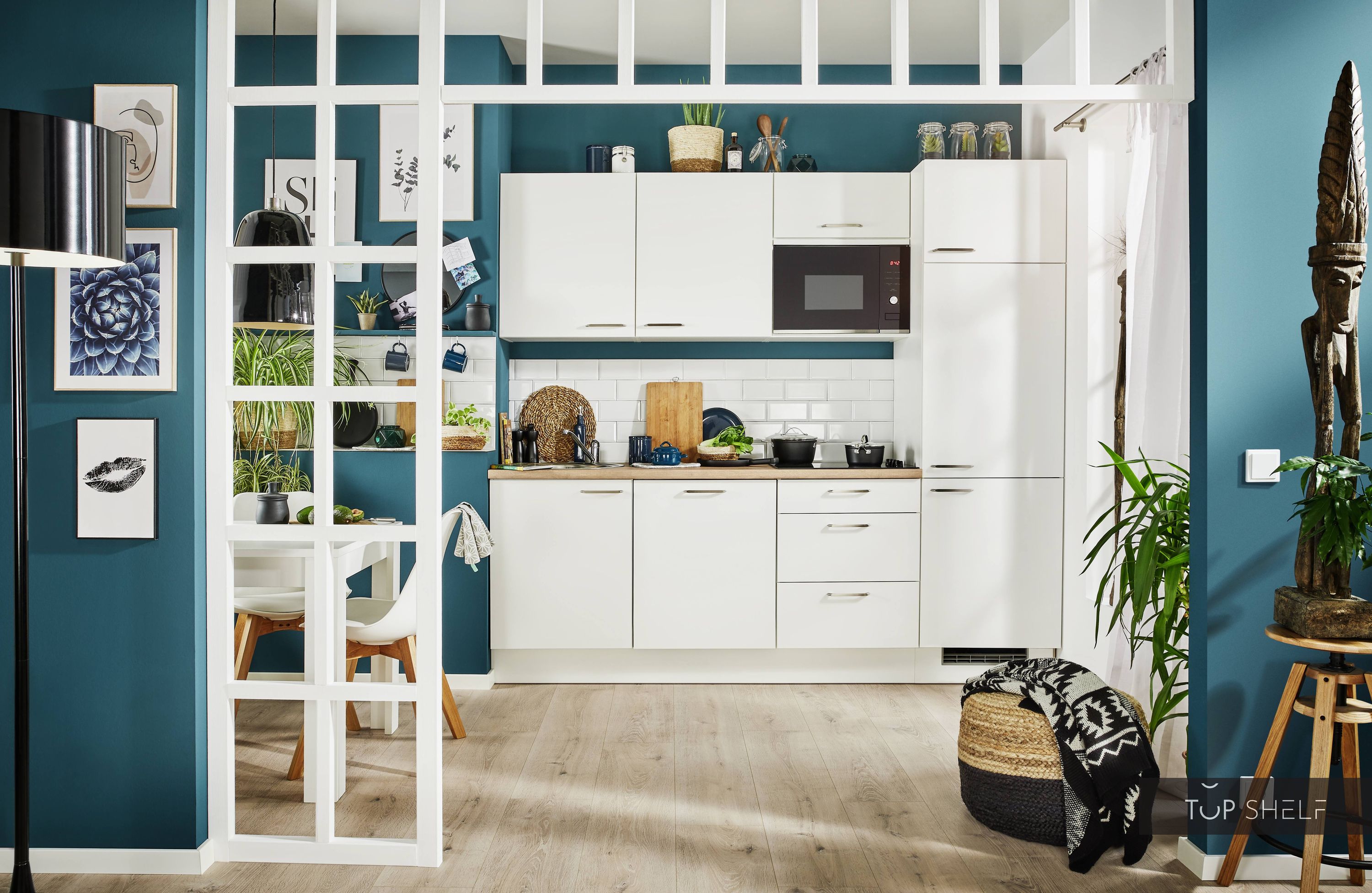

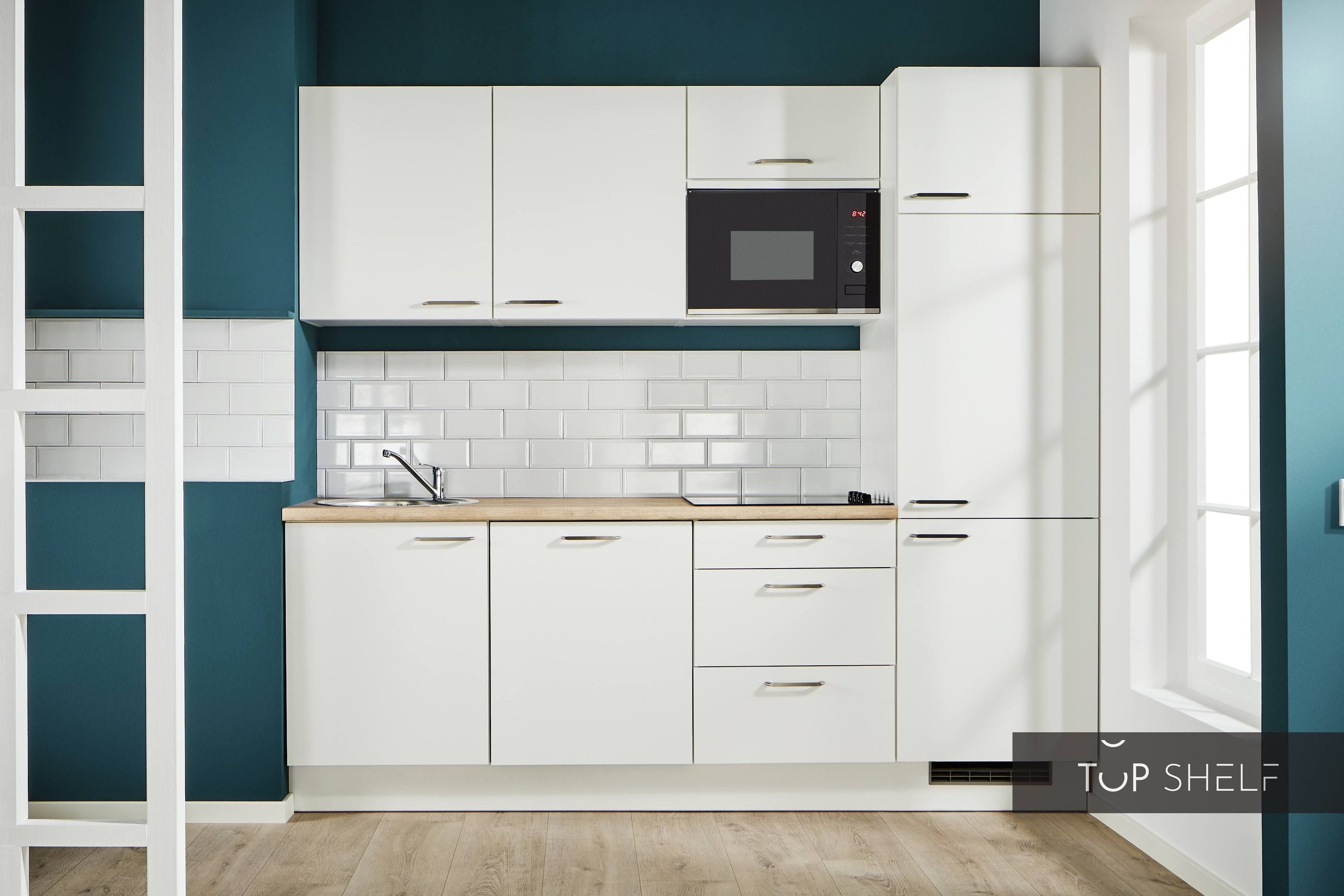

The fully pre-assembled Pino kitchen consists of a kitchen unit with a total length of 2.40 m | 240 cm. The fitted kitchen includes a sink cabinet, an appliance cabinet for the refrigerator, a cooking station cabinet, three wall cabinets, and a dishwasher front with door front for a fully integrated dishwasher. The kitchens come directly with the matching built-in appliances from the manufacturer Zanker.

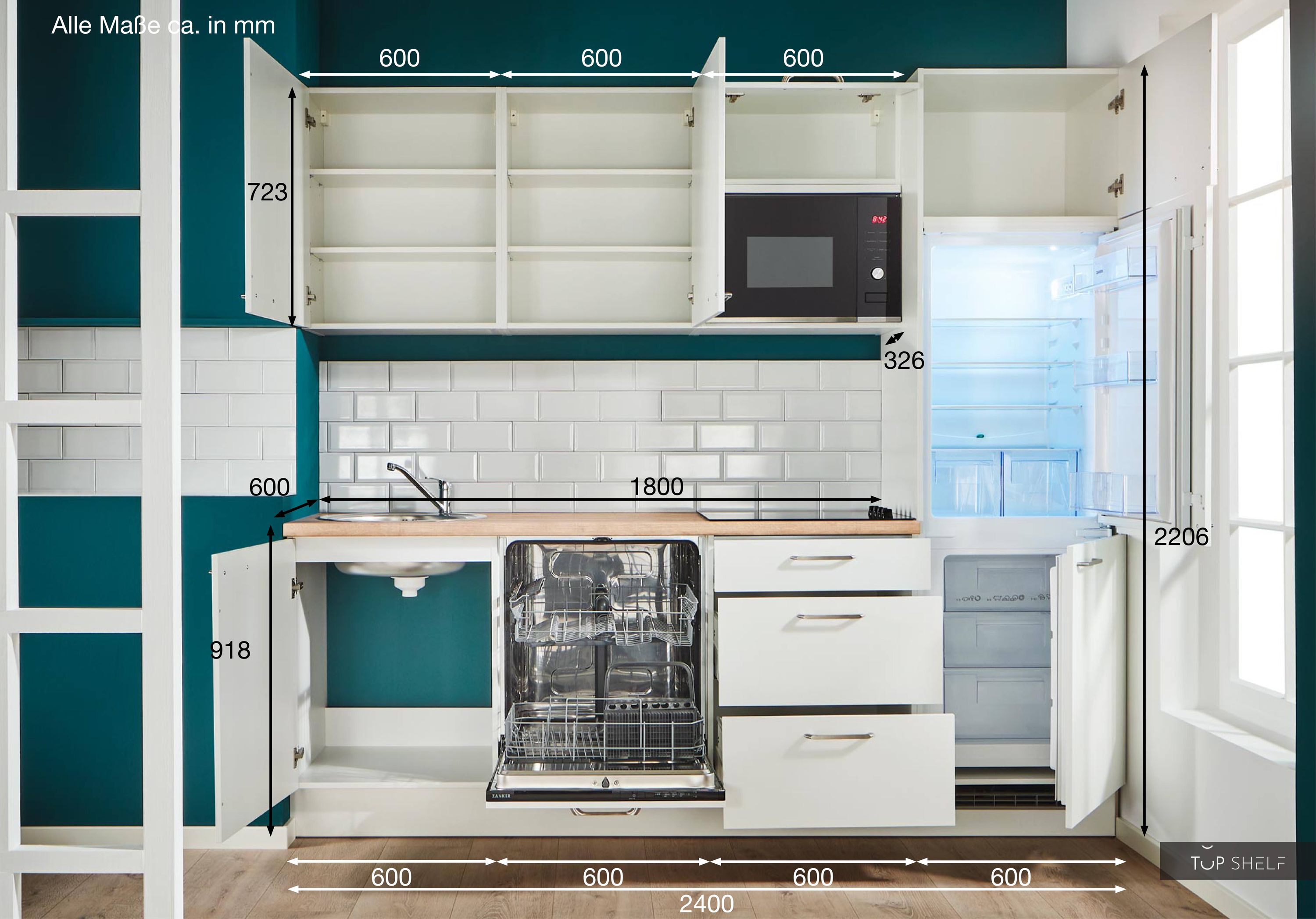

This Pino kitchen is a total of 2.40 m wide and 2.06 m high.

The Pino cabinets are characterized, among other things, by the following features:

simple & fast

Super easy assembly thanks to pre-assembled cabinets, very quick setup,
Delivery by professional freight forwarder, illustrated assembly instructions included.

all inclusive

Zanker built-in appliances: refrigerator, glass ceramic hob, sink + faucet, worktop cutouts for sink and hob

durable & hard-wearing

Made in Germany, high-quality scratch and abrasion resistant, fronts and corpus coated on both sides
melamine coated, particularly high load capacity of visible edges, especially stable
Quality fittings from Blum, practical full extension, quiet running with
Soft-close technology; self-closing door hinges with 107° opening angle for convenient access to storage space

thoughtful

Height-adjustable plinth feet (14 -17 cm) allow perfect alignment of the kitchens, the
Plinth panel with attachable sealing profile prevents the penetration of water and dirt

Material & decor

• Front: white, carrier board melamine resin coated with slightly rounded edges all around, front thickness 16 mm
• Corpus: white, bottom/top panels white, front edges in corpus decor, cabinet interior white; 16 mm thick with melamine coating on both sides, front side with white 1 mm thick edge, back side covered with neutral paper edge.

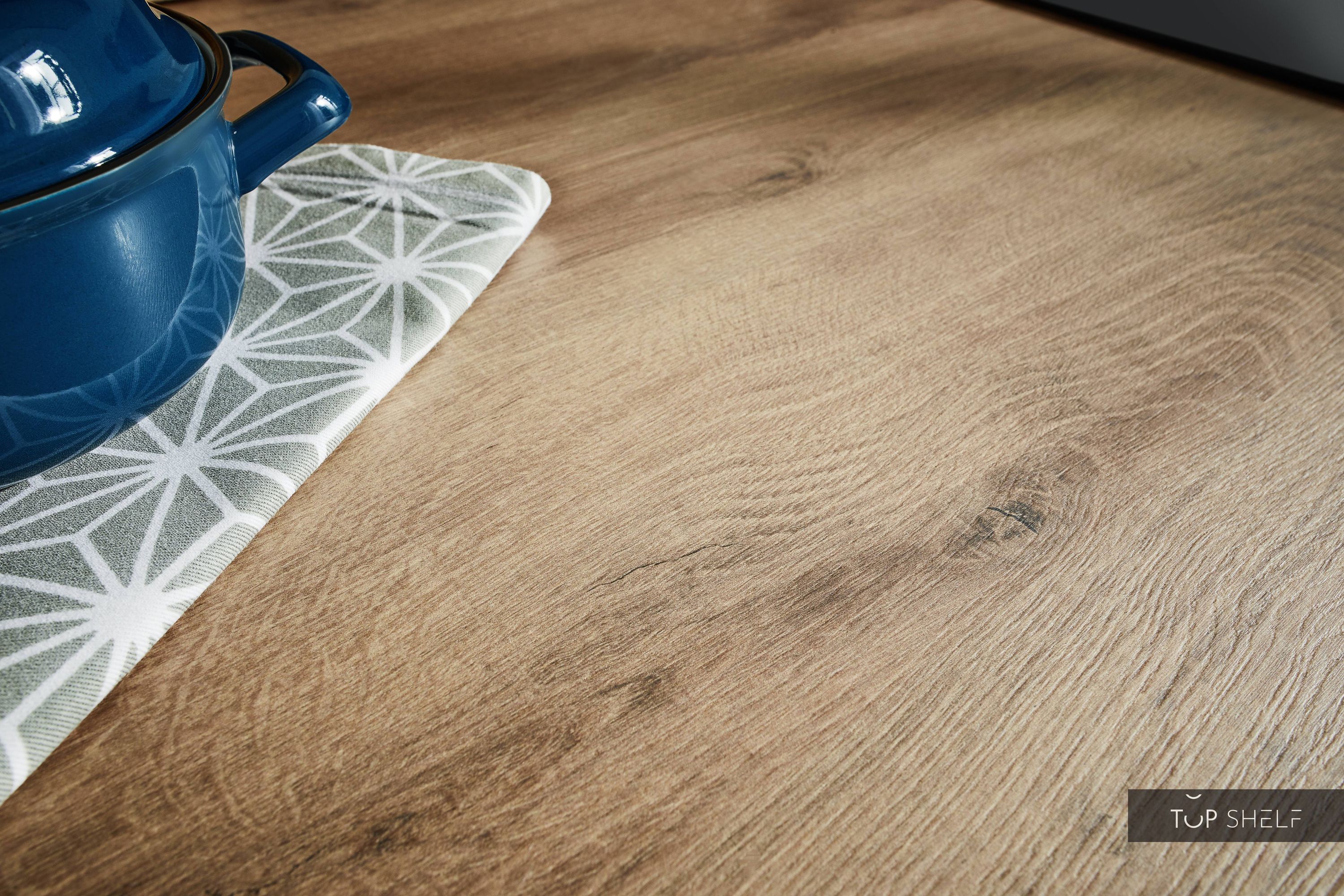

• Worktop: honey oak veneer, high-quality three-layer chipboard, surface covered with branded laminate sheets

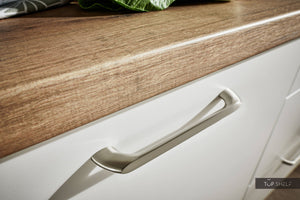

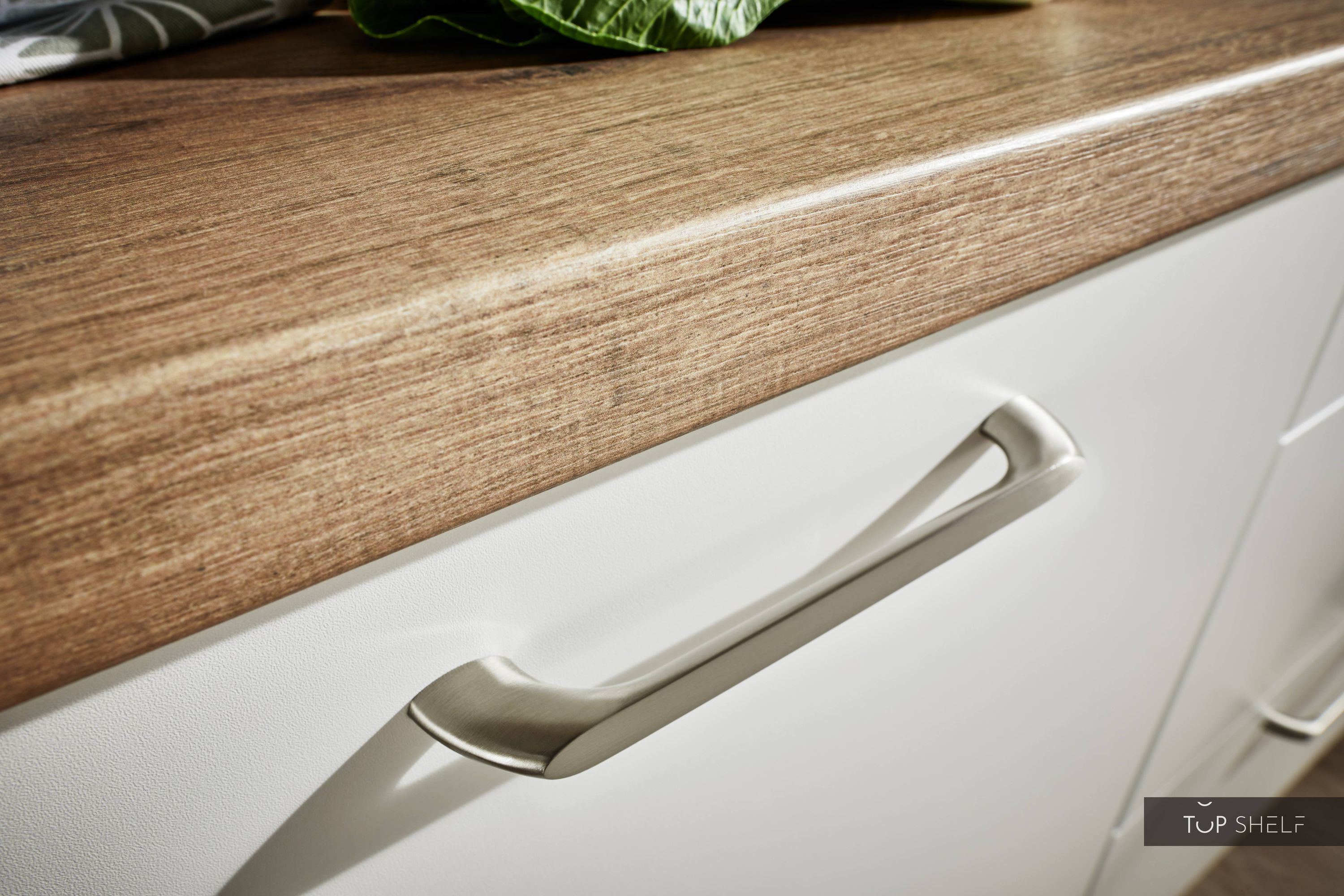

• Handles: metal bow handle stainless steel look
• Hinges: self-closing Blum Clip hinges in all-metal design, 3-dimensionally adjustable, opening angle 107

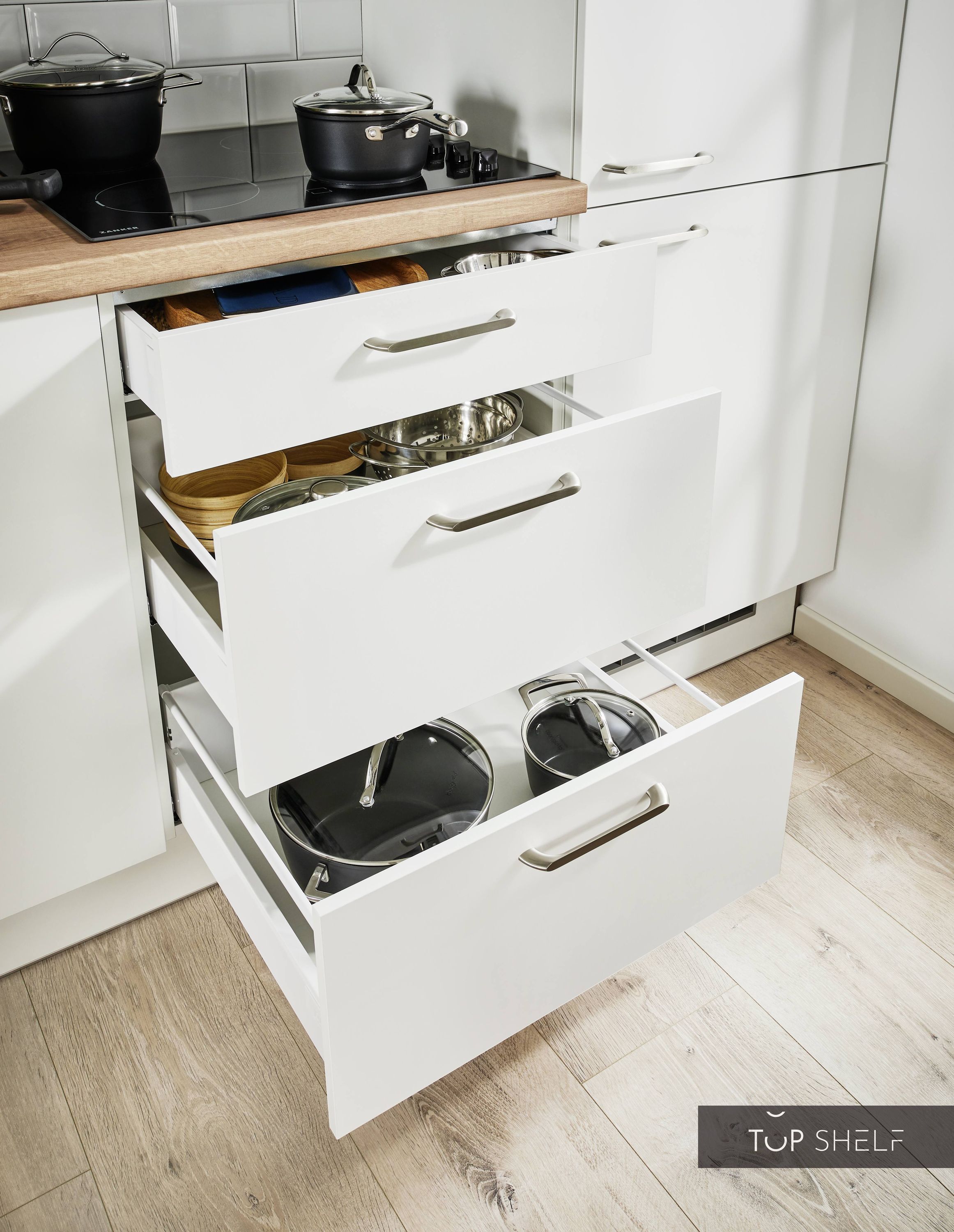

• Drawers / slides: silk white, straight frame, full extension with Servosoft, automatic locking, self-closing in the last centimeters, stable 16 mm drawer bottom, exact 3-dimensional adjustability of the front panel
• Built-in sink: stainless steel rustproof including mixer tap

Assembly information & delivery

• Easy assembly thanks to pre-assembled cabinets
• Illustrated assembly instructions are included with every kitchen shipment
• Fast & reliable and cost-effective freight delivery

Scope of delivery - the following Pino cabinets and Pino kitchen accessory items are included in the delivery:

Pino kitchen cabinets:

1. Base cabinet for sink, 1 hinged door, left hinge, 60 x 87.8 x 57.6 cm
2. Base cabinet for hob, 1 drawer, 2 pull-outs, 60 x 87.8 x 57.6 cm
3. Door for dishwasher
4. Side cabinet for built-in appliances, right hinge, 60 x 206.2 x 57.6 cm
5. Wall cabinet, 1 hinged door, left hinge, 60 x 57.9 x 34.2 cm
6. Wall cabinet, 1 hinged door, right hinge, 60 x 57.9 x 34.2 cm
7. Wall cabinet for built-in microwave, 1 flap, 60 x 57.9 x 34.2 cm

Pino kitchen accessories included:

1. Worktop incl. cutout for hob and sink, L= 180 cm
2. Appliance conversion refrigerator with 600mm width
3. Base package

The following electrical appliances and accessories can be optionally selected:

Electrical appliances:

1. Glass-ceramic double hotplate EB-GK2-KX from the brand PKM has two cooking zones. Each cooking zone has 9 heating levels. The cooktop is simple and intuitive to operate thanks to touch control and has a timer & touch control function. The PKM cooktop is 28.80 cm wide, 52.00 cm deep, and 5.30 cm high. The large cooking zone has a power of 1800 watts and the small cooking zone has a power of 1200 watts. The maximum power is 3000 watts. The connection cable is 1.20 m long with a Schuko plug and offers direct connection to a 230V socket.

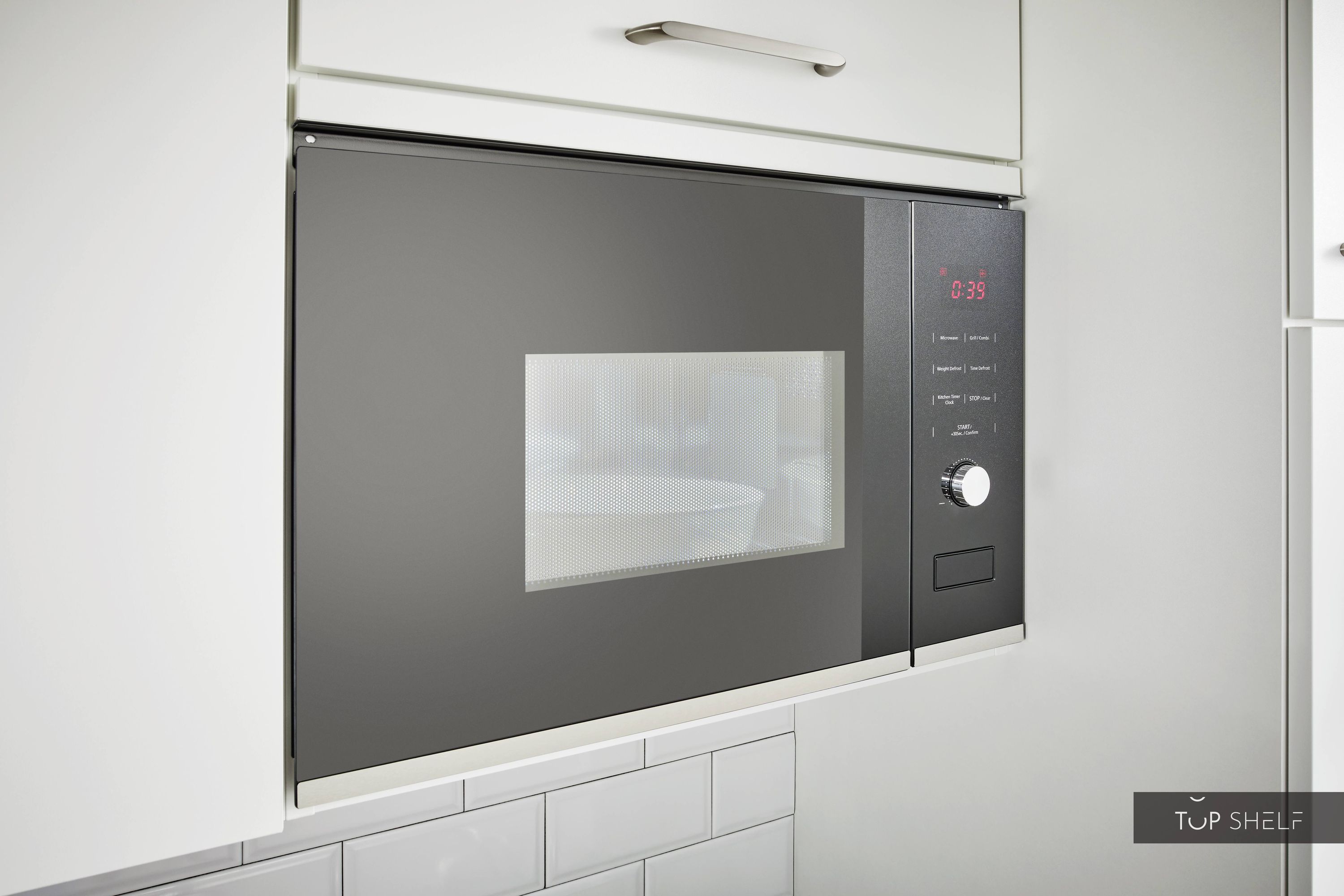

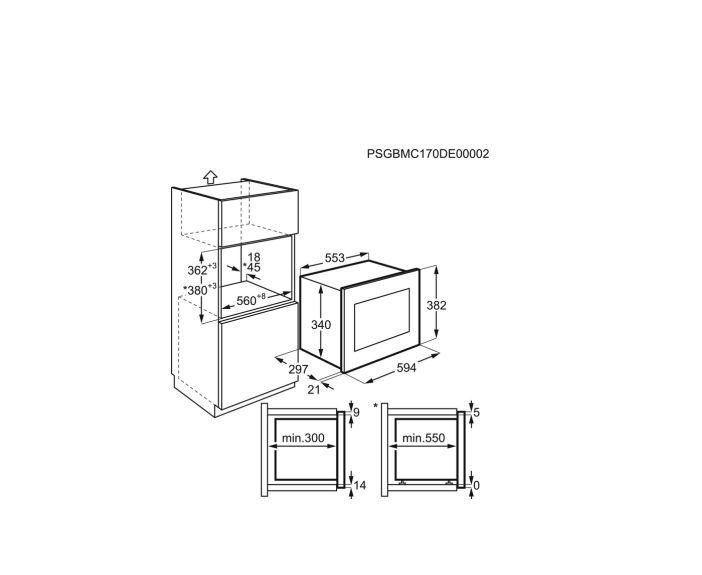

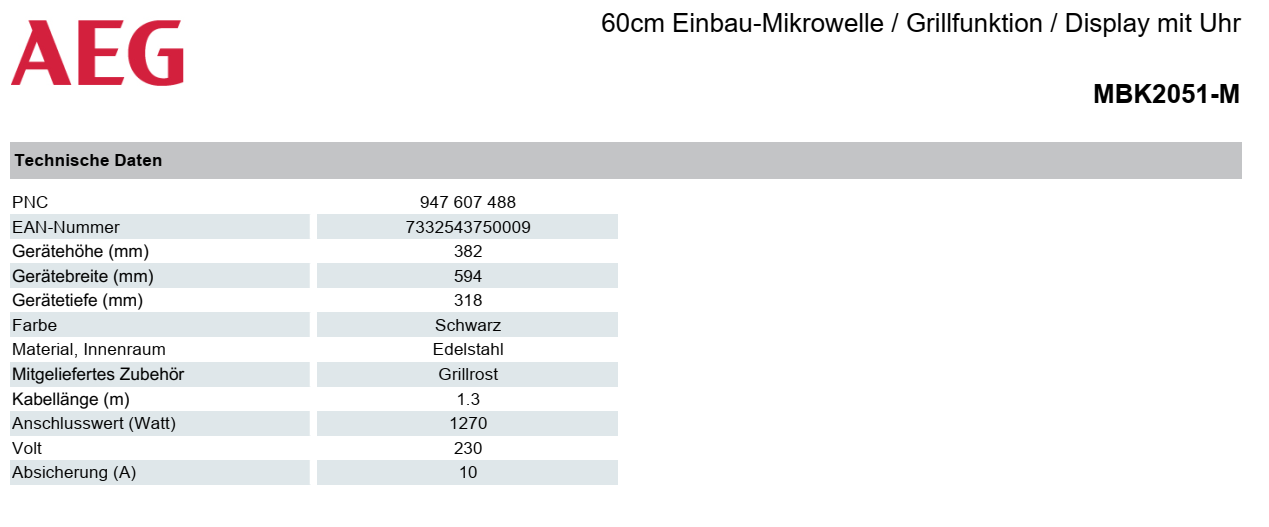

2. The built-in microwave MBK2051-M from the brand ZANKER is a black dual-function microwave with a grill function and a 20-liter cooking space. The built-in microwave has a height of 38.2 cm, a width of 59.4 cm, and a depth of 31.8 cm. The power rating is 1270 watts. The microwave power is a maximum of 800 watts and is adjustable in 5 levels.

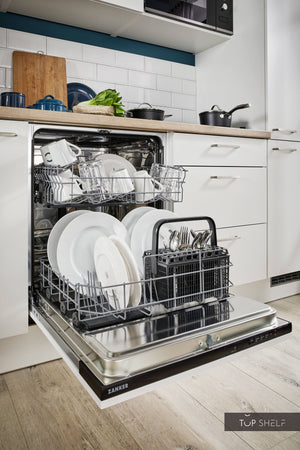

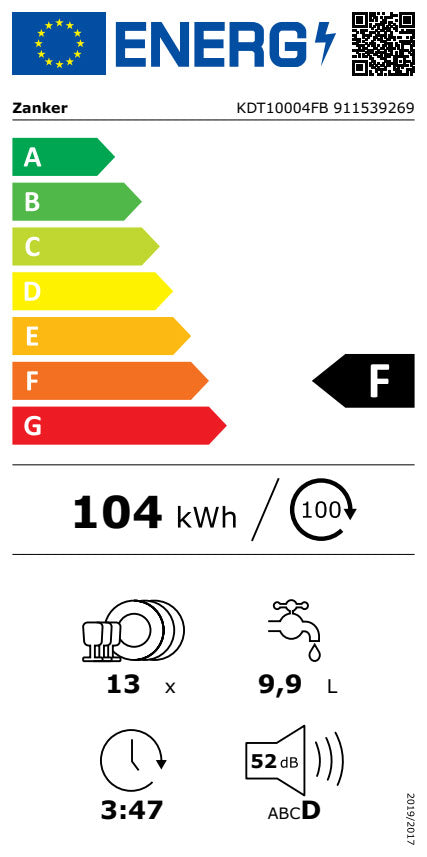

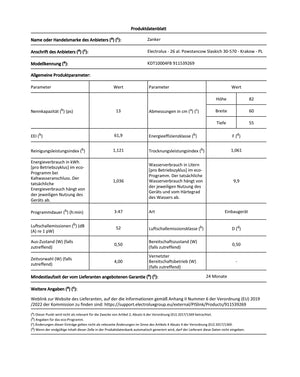

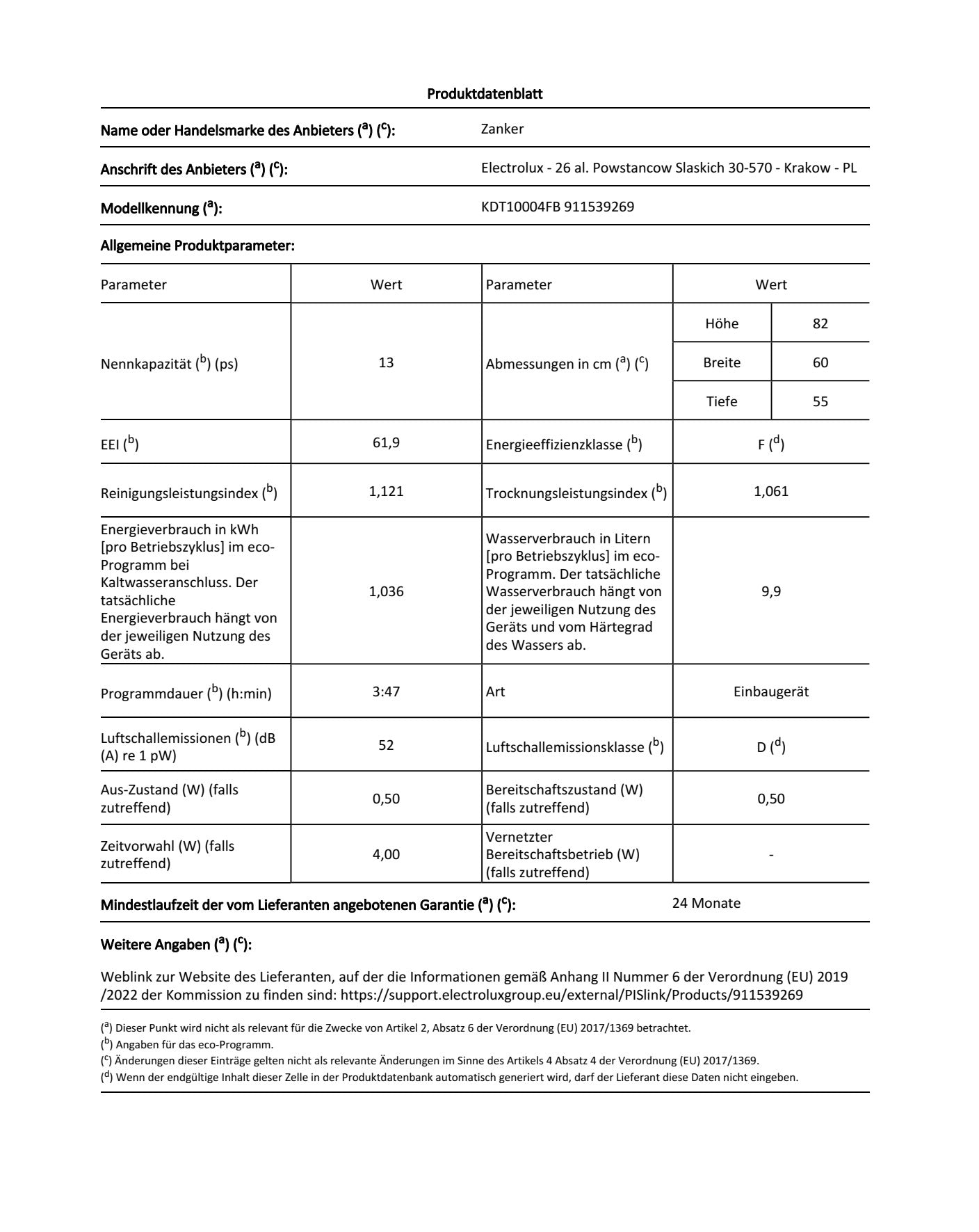

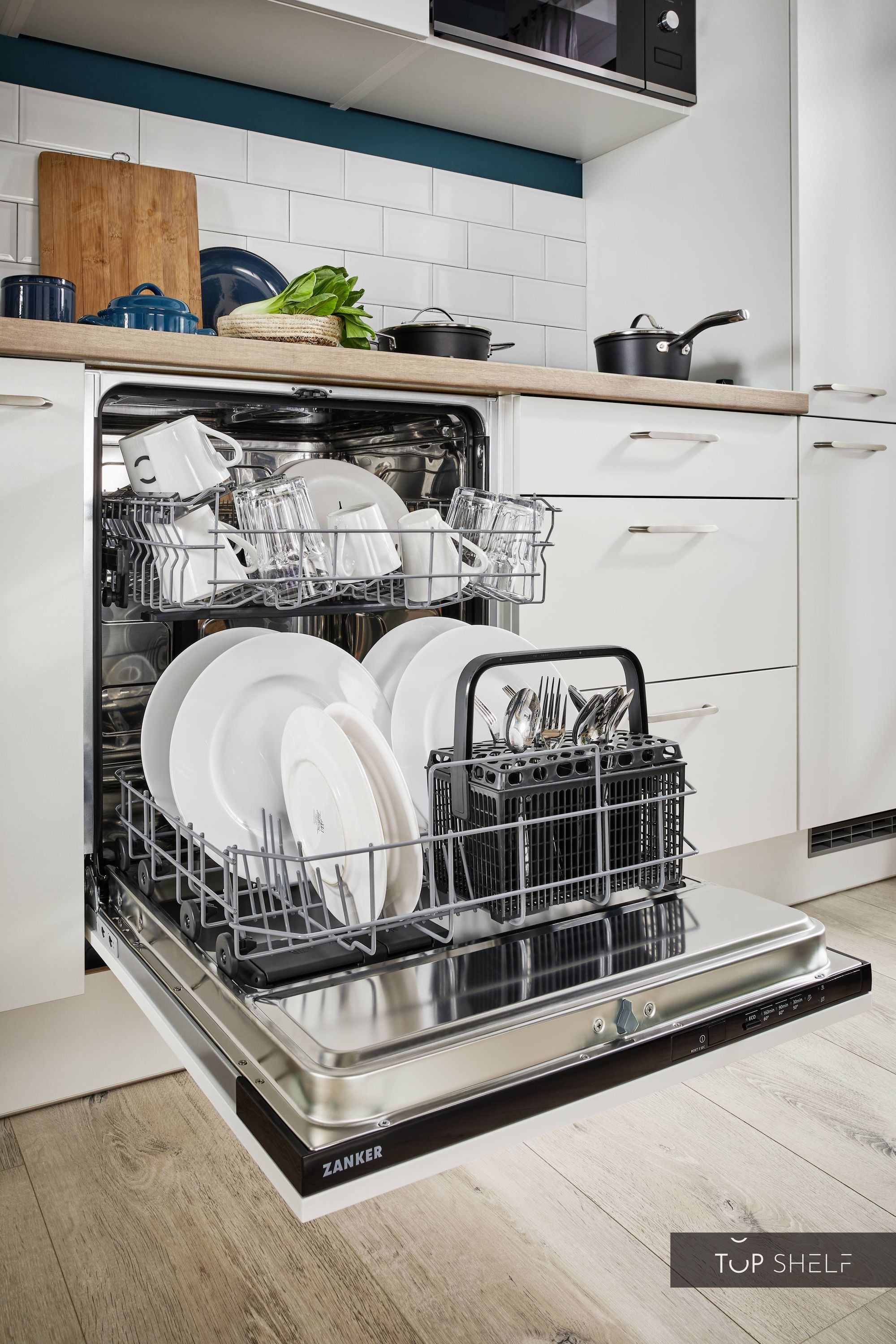

3. The fully integrated dishwasher KDT10004FB from the brand Zanker is classified in energy efficiency class F. The dishwasher has 5 wash programs and an adjustable upper basket. The weighted energy consumption in kWh per 100 cycles is 104 kWh. The eco program has a water consumption per cycle of 9.9 liters. The device has a height of 81.8 cm, a width of 59.6 cm, and a depth of 55.0 cm. The airborne noise emission in dB(A) re 1 pW is 52 dB(A).

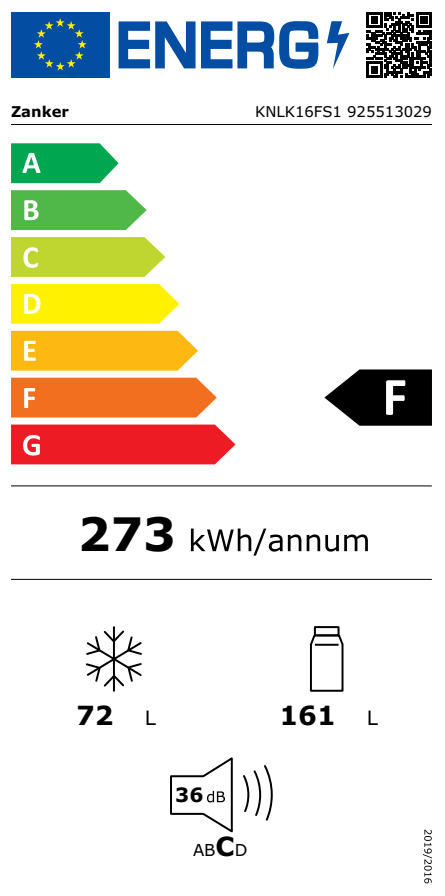

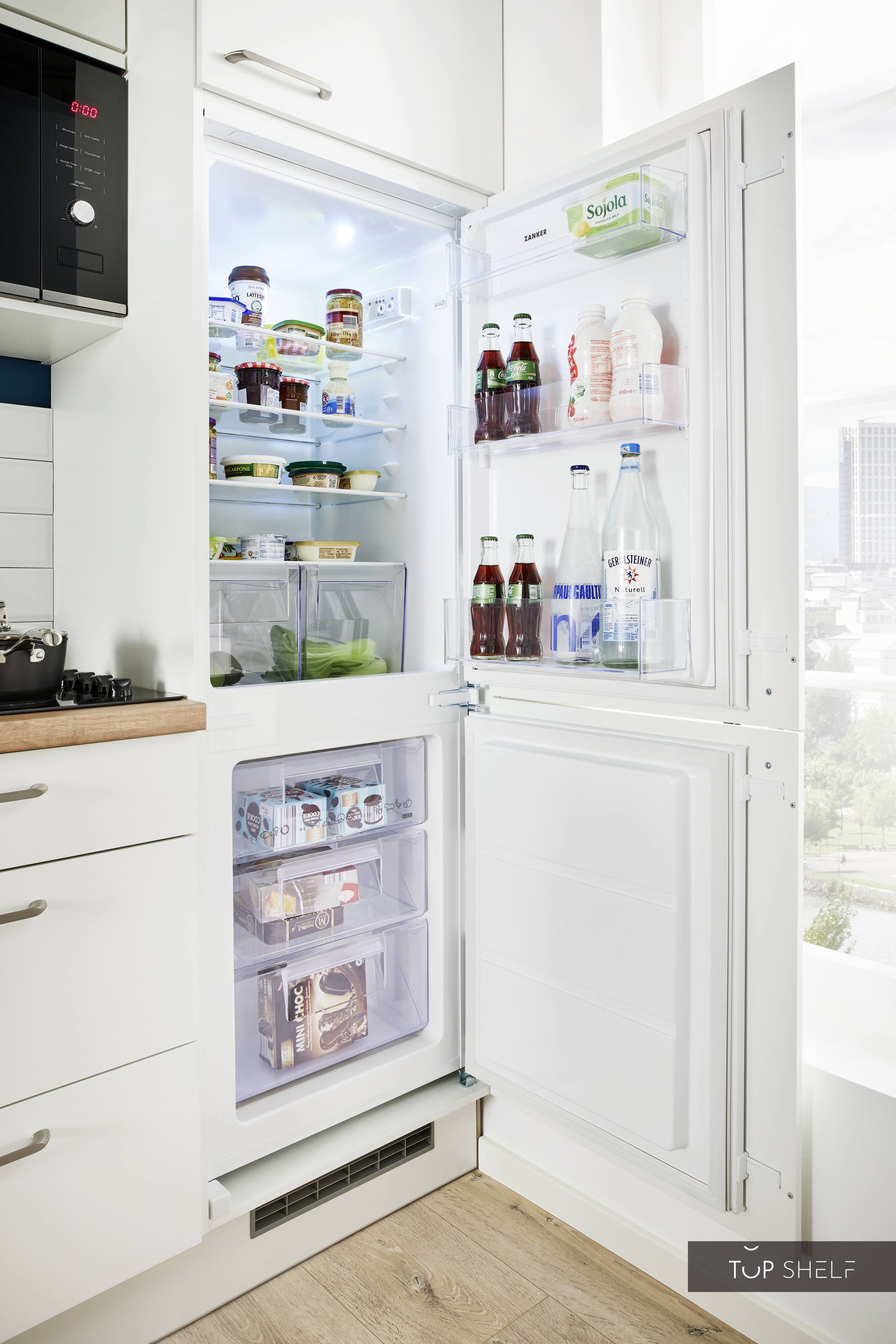

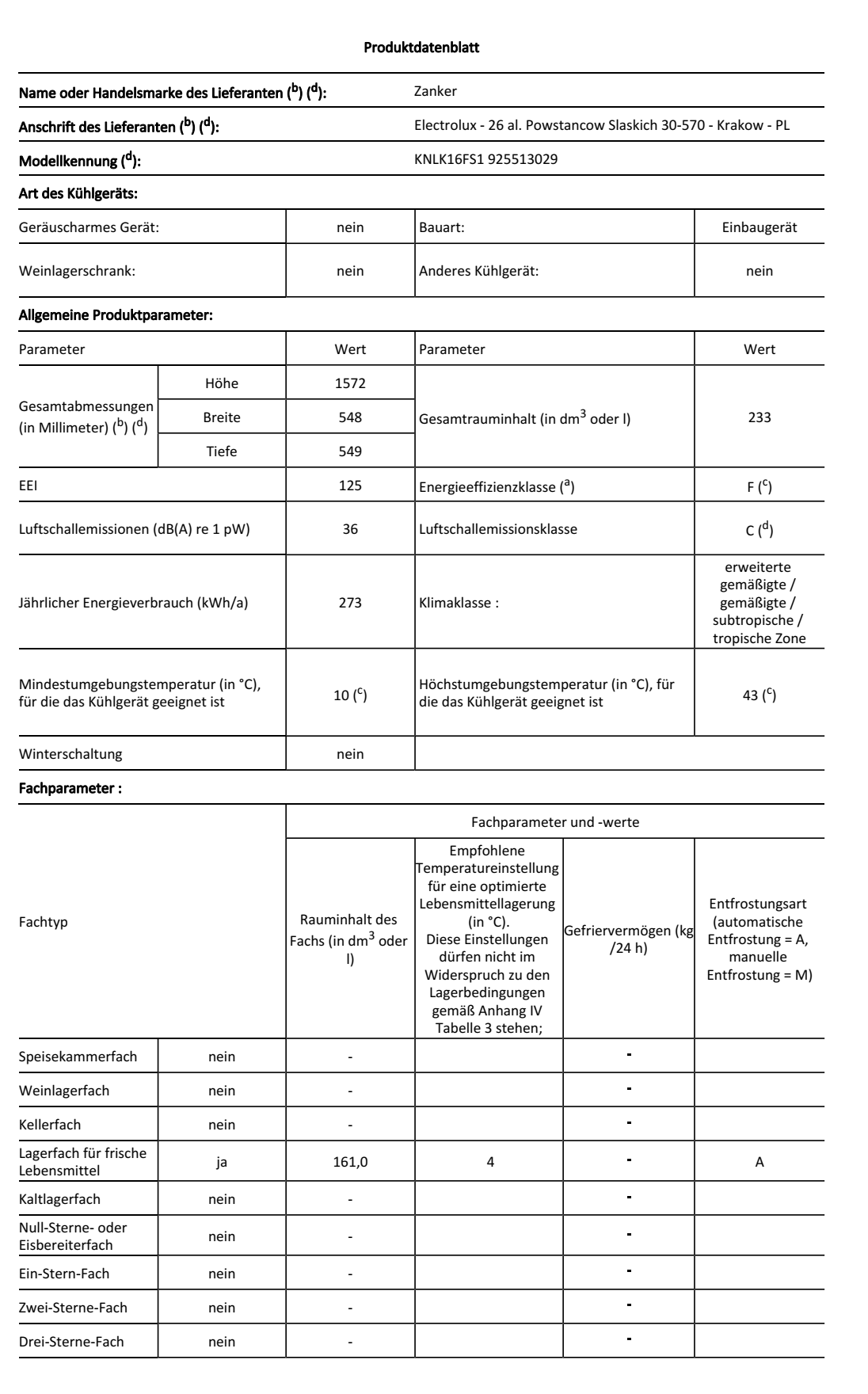

4. The KNLK16FS1 fridge/freezer combination from the brand Zanker has an installation height of 158.00 cm and a total usable volume of 233 liters, with the fridge compartments holding 161 liters and the freezer compartments 72 liters. The refrigerator is classified in energy efficiency class F. The annual energy consumption is 273 kWh. The device has a height of 157.20 cm, a width of 54.80 cm, and a depth of 54.90 cm. The airborne noise emission in dB(A) re 1 pW is 36 dB(A).

Kitchen accessories:

1. Stainless steel sink with tap hole drilling
2. High-pressure mixer tap
