nobilia notches with edge assignments AP-A

nobilia notches with edge assignments AP-A

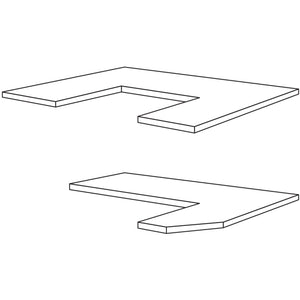

• Notches with edge assignments.
• notches with Edge assignments Dimensions or sketches are required.
• With bevels of up to 150°, the edge allocation can be freely selected on each side. In the case of edge assignment with an N edge, APN-A or APN-AS is also calculated.
• For bevels > 150°, the edge allocation must be uniform (APN or APD) and the radius must be at least 20 mm for APD.
• The minimum width for U-notches rounded on the inside is 450 mm.

nobilia Product Information

• nobilia MPN / nobilia Article Number: 9191
• nobilia Type / Article Designation: AP-A
